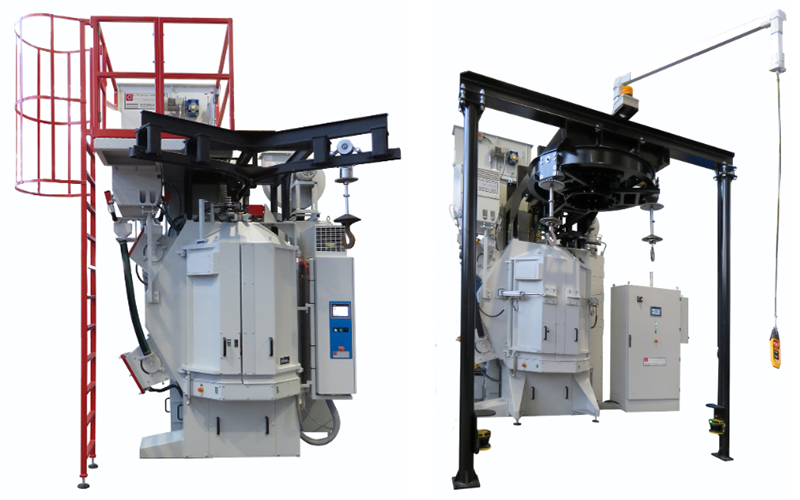

COMBINATION HANGER-TABLE SHOT BLASTING MACHINE MT SERIES

• COMBINED LOADING SYSTEM: BOTH HOOK AND TABLE
• MAXIMUM HOOKS’ LOAD 500 KG. OR 1000 KG.
• BLASTING CHAMBER MADE BY MANGANESE STEEL
• AUTOMATIC CONTROLS INDUSTRY 4.0
• AUTO CLEANING DYNAMIC FILTERING DEVICE
• HIGH DUSTS’ SEPARATION

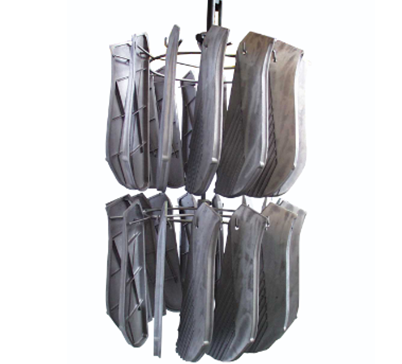

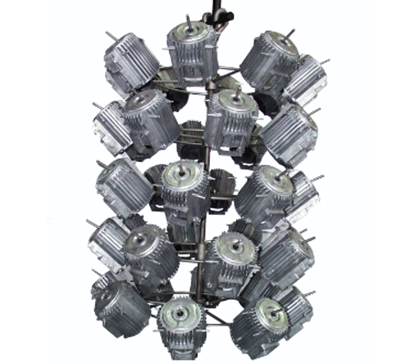

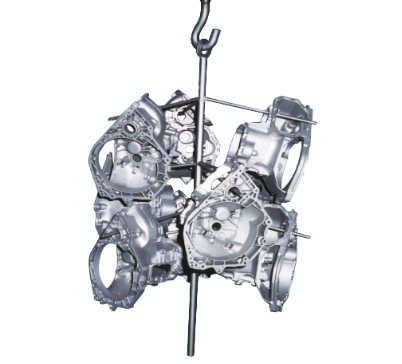

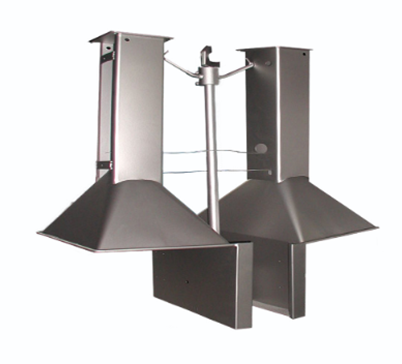

Extremely versatile series, allows to treat both workpieces on hangers or positioned onto the rotary table.

WORKING CHARACTERISTICS

“MT” SERIES MODEL	HOOK	WHEELS	HOOK OPERATING SIZE (mm)			HOOK MAX LOAD	TABLE OPERATING SIZE (mm)		TABLE MAX LOAD
			D	D1	H	(kg)	Ø	H	(kg)
MT/1000 Y	2	2	1000	-	1150	300	1000	1250	900
MT/1000 3G	3	2	1000	700	1150	500	1000	1250	900
MT/1400 Y	2	2	1400	-	1150	500	1400	1250	1400
MT/1400 3G	3	2	1400	1000	1150	500	1400	1250	1400
MT/1416 3G	3	3	1400	1000	1650	500	1400	1750	1400
MT/1800 Y	2	2	1800	-	1150	500	1800	1250	1800
MT/1800 3G	3	2	1800	1200	1150	500	1800	1250	1800
MT/1820 2G	2	3	1800	1200	2000	500	1800	2100	1800
MT/1825 2G	2	3	1800	1200	2500	500	1800	2600	1800
MT/2425 1G	1	4	2400	1800	2500	3000	2400	2600	5000
