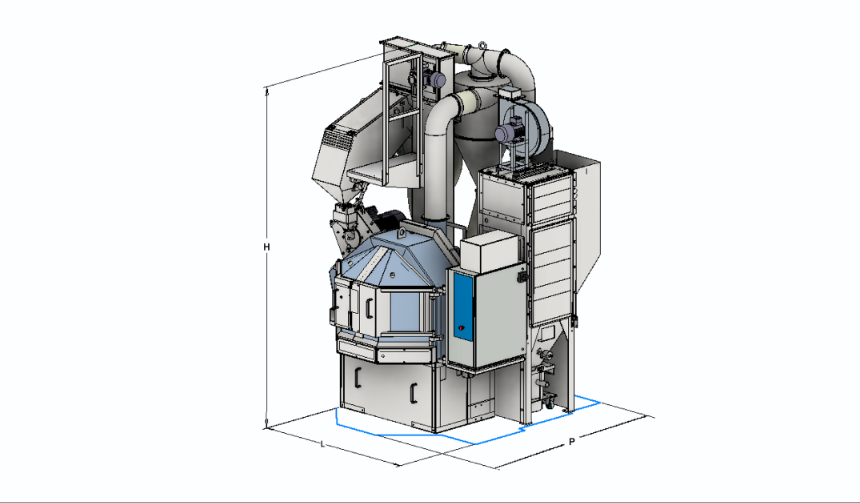

ROTARY TABLE SHOT BLASTING MACHINE T SERIES

• HIGH QUALITY MATERIALS
• CE AND AtEx SAFETY STANDARDS
• HIGH PRODUCTIVITY
• LOW ENERGY CONSUMPTION
• LOW OPERATING COST
• MANUAL LABOUR REQUIRED ONLY FOR LOADING/UNLOADING

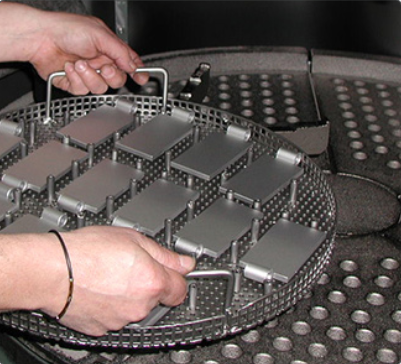

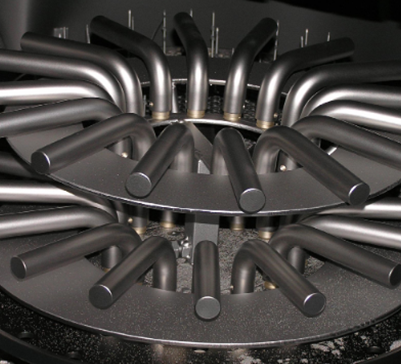

Because of their characteristics, the rotary-table shotblasting machines can easily be incorporated in diversified manufacturing steps, adapting to the treatment of various parts of different shape and type. They can be equipped with fixtures and accessories built according to the pieces to be treated.

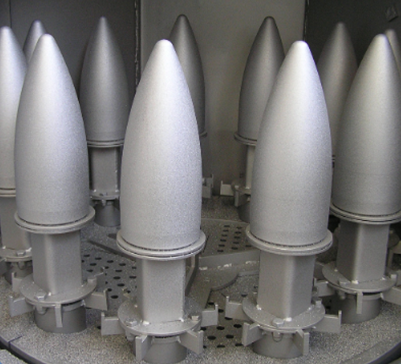

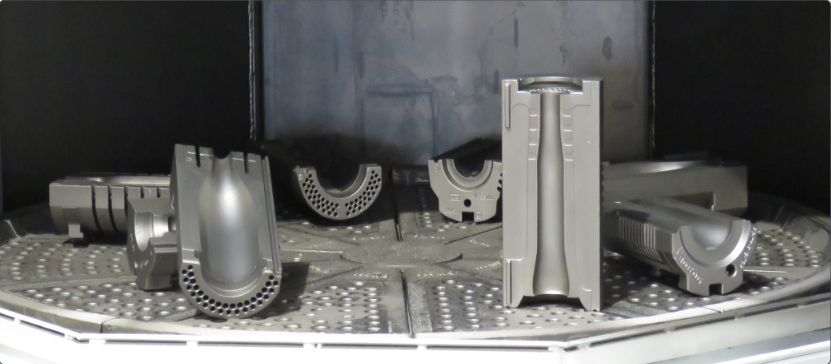

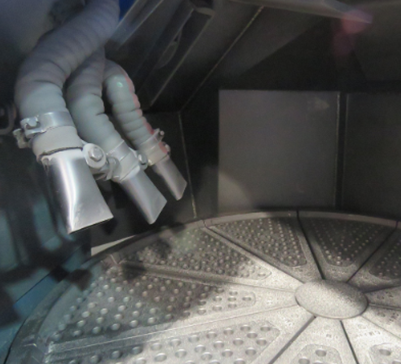

Positioned on the moving table the pieces are uniformly covered with a wide jet of shot launched by centrifugation by one or more blastwheels.

Our production range covers from a minimum table diameter of 500 mm up to a maximum of 2400 mm.

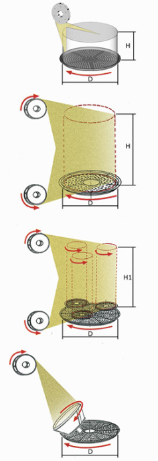

WORKING CHARACTERISTICS

“T” SERIES MODEL	WHEELS	WORKING DIMENSIONS			LOAD CAPACITY	BASKET CAPACITY
	-	D (mm)	H (mm)	H1 (mm)	(kg)	(dm3)
T5	1	500	350	250	250	16
T10	1	1000	450	350	900	25
T10 H750	1	1000	750	650	900	20
T10 H1000	1	1000	1000	900	900	20
T10 H1250	1	1000	1250	1150	900	23
T10/2T H750	2	1000	750	650	900	20
T10/2T H1250	2	1000	1250	1150	900	23
T14	1	1400	500	400	1400	25
T14 H1000	1	1400	1000	900	1400	25
T14/2T H750	2	1400	750	650	1400	25
T14/2T H1250	2	1400	1250	1150	1400	25
T14/3T H1750	3	1400	1750	1650	1400	25
T18	1	1800	500	400	1800	-
T18/2T H850	2	1800	850	750	1800	-
T18/2T H1250	2	1800	1250	1150	1800	-
T24	2	2400	1250	1150	5000	-
T24 H1750	3	2400	1750	1650	5000	-
